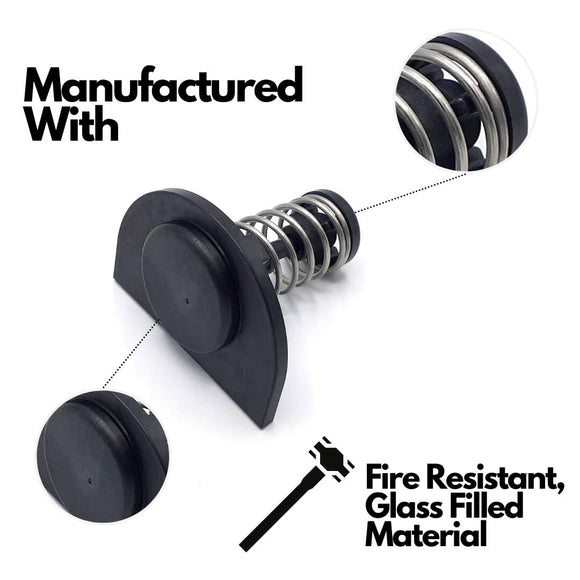

Swimables Bypass Valve Kit Compatible with Pentair Mastertemp and Max-E-Therm Pool and Spa Heater 77707-0001 - Compatible with All Pentair and Starite Pool Heater

Swimables Heater Repair Kit for Pentair Mastertemp and Starite Max-E-Therm Pool and Spa Heater - Mega Bundle Includes - Thermistor 42001-0053S, Stack Flue Sensor 42002-0024S, HLS 42001-0063S, AGS 42002-0025S, Igniter 77707-0054, Thermal Regulator 77707-0010, Control Board 42002-0007s, Membrane Pad 42002-0029Z/472610Z, Manifold Oring Set 77707-0120, Bypass Valve 77707-0001, and Air Flow Switch 42001-0061S. Mega Bundle - The perfect Pentair Mastertemp parts list designed to fix most problems within the Pentair Pool Heater. This Pentair Mastertemp 400 parts bundle is designed for the pool professional or the homeowner. Compatibility: This pressure switch is compatible with all BTU's of the Pentair Mastertemp heater parts and Mastertemp 400 parts. It will also work with HD Versions of the heater as well. Affordable: Unlike the OEM, this parts list is the most affordable Master Temp 400 and Sta Rite Repair Kit on the market. Compatible with all Pentair Pool Heater parts. Kit Includes: Thermistor, Stack Flue Sensor, High Limit Switch, AGS, Igniter , Thermal Regulator Kit, Control Board, Membrane Pad, Manifold Oring Set , Bypass Valve, and Air Flow Switch. Best Value - This one purchase can ensure that your Pentair Pool Heaters and Starite Pool Heater will work for years to come. The kit contains enough replacement parts to fix various different issues.

FEATURES

• Compatibility: Designed to work with 460730, 460732, 460734, 460736, 460805, 460806, SR200NA. SR333NA, SR400NA. SR400HD. This bypass valve will work on all models of the Mastertemp and Max E Therm
• Assembly (Step 1): Turn off system and all power from the breaker. Remove Drain Plug under the Manifold. Loosen the inlet/outlet piping unions. Unscrew and remove the Thermal Regulator Plug.
• Assembly (Step 2): Remove the Manifold by removing the 10 bolts holding it together. Carefully pry the bottom plate off of the Manifold. The manifold O-ring and insert will come off.
• Assembly (Step 3): Remove the baffle plate to gain access to the Internal bypass valve chamber. Remove the bypass valve assembly and replace it with a new one.
• Assembly (Step 4): To replace the valve, reverse the steps listed above. Use the Swimables bypass to ensure your heater is back up and running in no time!
